Anti Abrasive Dia100mm Dia150mm Pipe Conveyor Belt

Contact Now

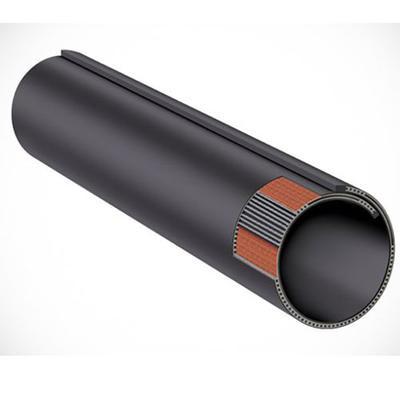

Pipe Conveyor Belt

Pipe conveyor belt is a new type of conveying belt which uses high tenacity canvas EP/NN or steel cord as carcass, high elastic, high anti-abrasive and high strength rubber as working surface. It’s mainly used in conveying materials which are easily polluted like power, granular materials, etc. when working, the rubber belt changes its form from flat to U shape and finally to pipe, folding the materials and realizing the process of enclosed conveying. Enclosed conveying of materials, protecting both the materials and the environment.

Width & pipe diameter
Belt width & corresponding pipe diameter (unit: mm)

Belt width 360 600 800 1000 1100 1300 1600 1850 2250 2450 2900 3100
Pipe diameter 100 150 200 250 300 350 400 500 600 700 800 850

Anti Abrasive Dia100mm Dia150mm Pipe Conveyor Belt

Used for tubular conveyor's transportation

Cover properties Tensile strength Breaking elongation Abrasion loss Anti ozonea Change rate of tensile strength & breaking elongation after hot air ageingb, %
D 18.0 400 90 No crack -25~+25
H 24.0 450 120 No crack -25~+25
T1,T2 10.0 300 200 - -45~+45
a. Anti ozone testing conditions: concentration (50±5)×10-8 (volume fraction), temperature (40±2)℃, elongation (40±2)%, time 96h.
b. Hot air ageing testing conditions: D, H type belt 70℃×168h; T1 type belt 100℃×168h; T2 type belt 125℃×168h.
Note: D—high abrasion working conditions; H—high tear working conditions; T1—Heat resistance 100℃ working conditions; T2—Heat resistance 125℃ working conditions.
