Rainproof Openable Conveyor Cover For Power Station

Contact Now

Conveyor Cover

Introduction
Conveyor cover is used to protect the conveyed materials ,belting, idlers and framework from rain, wind, dust during transportation as well as to avoid the dispersion of powders.It is consist of steel sheet, hook, hinge and rivets etc. In addition , the steel plate can also be manufactured in galvanized steel,aluminum, stainless steel, fiberglass and painted steel.Anti-rain conveyor cover is suitable for belt conveyor with width of 500/650/800/1000/1200/1400/1600/1800/2000mm in power station, cement plant, steel mill, chemical plant, port, dock, mine, coal plant etc.

Features and advantages
1. No installation supports needed to brace covers on conveyor.
2. Rigid, corrugated covers are infinitely stronger than smooth designs.
3. Conveyor cover installation is not dependent on the location of idlers.
4. Overlapped edges double thickness increases conveyor cover strength.
5. Waves on surface to increase the support force, even can withstand a person.
6. Conveyor cover protects belt conveyor free from rain, dust, sunshine, wind etc.
7. Galvanized steel plate or fiberglass construction material can be optional.
8. Symmetrical design allows easy placement, quick installation and safe access.
9. Openable conveyor cover designed with hinges and self-tapping screws.
10. Full style hinges of the conveyor covers are protected with rust free coating.

Selection Conditions
♦ Thickness:________mm(PS.We can customize the thickness according to the customer’s requirement as well as provide the common thickness of 0.5mm,0.6mm and 0.8mm)
♦ For it working with the belt conveyor,we will very appreciate if you can provide us the corresponding layout drawing to normally install it;

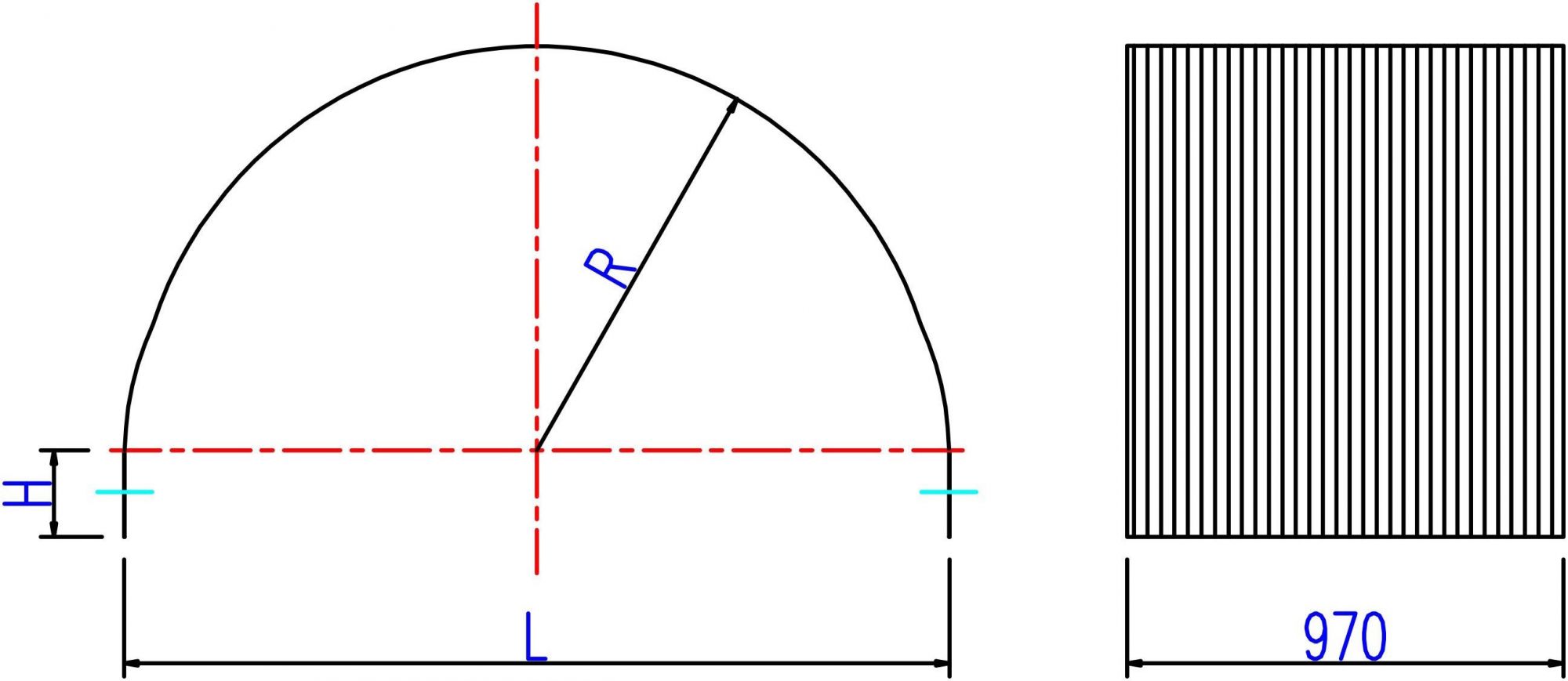

If can’t,please refer to the following picture and provide the core parameters for a better quote and production:L_______mm;H ________mm;R_______mm

Rainproof Openable Conveyor Cover For Power Station

Model Belt Width Thickness Material Opening width Height Radius
YDT5 500mm 0.5mm colorized galvanized steel plate 846 573mm 423mm
YDT6 650mm 0.5mm 996 648 498
YDT8 800mm 0.5mm 1196 748 598
YDT10 1000mm 0.6mm 1396 848 698
YDT12 1200mm 0.6mm 1606 953 803
YDT14 1400mm 0.8mm 1856 1078 928
YDT16 1600mm 0.8mm 2056 1173 1028
YDT18 1800mm 1mm 2300 1280 1150
YDT20 2000mm 1mm 2546 1423 1273
Remark: During installation,should install the opeanable conveyor cover on the two fixed type conveyor covers near it,the effective length of each conveyor cover is 900mm.
